Introduction

This ProAmp API Functions List is intended for system programmers and driver developers. If you are an integrator or dealer, we recommend you use our pre-compiled drivers which are free, open source and available from the Pulse-Eight Remote Monitoring Portal.

Note that this is a public list of API functions; there may be commands that have not been documented or do not have an accompanying example. These private functions (internal) have not been included here as they mainly only exist for one-time setup of a system which is strongly recommended to be done through the web interface for our ProAmp product range.

This document should be used in conjunction with the relevant ProAmp product Manual and the API Documentation Overview section in the Remote Monitoring Portal.

IP Support

IP is our preferred communication protocol. The system is built on top of HTTP using a REST based architecture with JSON as the data transmission format. JSON is an extensible markup and order of data returned cannot be guaranteed. If you are writing a driver, we strongly recommend that you parse the JSON data properly, as not doing so is highly likely to result in the driver failing to work after a firmware update. JSON interpreters exist for all major languages used by Control system drivers, including Lua, Small and Javascript. We recommend that you view the Javascript source code in the main web interface, the entire web interface on our systems is static files calling the API as defined in the documentation.

RS232 Support

We include a legacy RS232 port on most of our products, this is to enable backwards compatibility with legacy control systems. We do not recommend its use if IP is available. There might be a limited set of commands documented throughout this API Functions List that are supported properly by RS232 control.

We recommend that you only use Port/List/Concise and Port/Set commands via RS232.

Connection Details: Baud Rate (57600), Data Bits (8), Parity (None), Stop Bits (1).

Getting Support

Pulse-Eight technical support team are happy to help with any questions regarding the API or any areas of the API that are not clearly documented.

For questions regarding this API Function List, please contact us at support@pulse-eight.com.

However, we cannot offer programming assistance in writing your driver, we can only provide assistance on our API documentation.

API Functions

Power

Description: Control the power state of the selected zone output

Command: amp/power/{zone}/{state}

Zone = 0-7

Power on = 1

Power off = 0

Example	Example Result	Comments
amp/power/0/1	{"Result":true,"Message":"Changed"}

Volume

Description: Manage the audio volume level for selected zone output

Command: amp/volume/[zone]/[{left volume}]/[{right volume}]

Zone = 0-7

Left volume, right volume = 0-100

Example	Example Result	Comments
amp/volume/	{"Result":false,"ErrorMessage":"Missing Or Invalid Parameter 'zone'"}
amp/volume/0	{"Result":true,"volLeft":44,"volRight":44}	if dolby disabled, returns std volume. zones 4-7 will always return std volume
amp/volume/0	{"Result":true,"dolbyvolume":44}	if dolby == 1, zone 0-2 or if dolby==2, zone 0-3 will return dolby volume.
amp/volume/0/50	{"volLeft":50,"volRight":50,"Result":true,"Message":"Changed"} {"dolbyvolume":50,"Result":true,"Message":"Changed"}	if std mode, sets both Left and Right to 50. if dolby enabled, will set dolby volume to 50
amp/volume/0/50/40	{"volLeft":50,"volRight":40,"Result":true,"Message":"Changed"} {"dolbyvolume":50,"Result":true,"Message":"Changed"}	if std mode, sets Left to 50 and Right to 40. if dolby enabled, will set dolby volume to 50
amp/volume/0/up	{"dolbyvolume":46,"Result":true,"Message":"Changed"} {"volLeft":43,"volRight":43,"Result":true,"Message":"Changed"}	increment by 1
amp/volume/0/down	{"dolbyvolume":45,"Result":true,"Message":"Changed"} {"volLeft":43,"volRight":43,"Result":true,"Message":"Changed"}	decrement by 1

Mute

Description: Manage channel full mute (on/off) for selected zone output

Command: amp/mute/{zone}/{channel}/[state]

zone 0-7

mute 0 = Normal, 1 = Mute Left, 2 = Mute Right, 3 = Mute Left and Right

Example	Example Result	Comments
amp/mute	{"Result":false,"ErrorMessage":"Missing Or Invalid Parameter 'zone'"}
amp/mute/0	{"Result":true,"mute":0}	if dolby disabled, returns std mute zones 4-7 will always return std mute
amp/mute/0	{"Result":true,"dolbymute":0}	if dolby == 1, zone 0-2 or if dolby==2, zone 0-3 will return dolbymute.
amp/mute/0/0 amp/mute/0/3	{"Result":true,"Message":"Changed"}	if std mode, will toggle mute for zone 0. If dolby enabled for that zone, will toggle dolby mute zone 0 and 3 will apply mute to both channels
amp/mute/0/1	{"Result":true,"Message":"Changed"}	if std mode, will toggle mute Left only. If dolby enabled for that zone, will toggle dolby mute
amp/mute/0/2	{"Result":true,"Message":"Changed"}	if std mode, will toggle mute Right only. If dolby enabled for that zone, will toggle dolby mute
amp/mute/0/0/1	{"Result":true,"Message":"Changed"}	if std mode, will mute both if dolby == 1, zone 0-2 or if dolby==2, zone 0-3 will mute all dolby channels
amp/mute/0/0/0	{"Result":true,"Message":"Changed"}	if std mode, will unmute both if dolby == 1, zone 0-2 or if dolby==2, zone 0-3 will unmute all dolby channels
amp/mute/0/1/1	{"Result":true,"Message":"Changed"}	if std mode, will mute left if dolby == 1, zone 0-2 or if dolby==2, zone 0-3 will mute all dolby channels
amp/mute/0/1/0	{"Result":true,"Message":"Changed"}	if std mode, will unmute left if dolby == 1, zone 0-2 or if dolby==2, zone 0-3 will unmute all dolby channels
amp/mute/0/2/1	{"Result":true,"Message":"Changed"}	if std mode, will mute right. if dolby == 1, zone 0-2 or if dolby==2, zone 0-3 will mute all dolby channels
amp/mute/0/2/0	{"Result":true,"Message":"Changed"}	if std mode, will unmute right if dolby == 1, zone 0-2 or if dolby==2, zone 0-3 will unmute all dolby channels

Stdzone

Description: Manage settings of standard stereo zones

Command: amp/stdzone {POSTdata}

Post: {"zone":0,"volLeft":43,"volRight":43,"mute":0,"minVol":40,"maxVol":208,
"bridgedMode":1,"pwrMode":1,"autoLevel":80,"autoTime":36000,"clip":0}

zone = 0-7

volLeft, volRight = 0-100, 0=Mute, 1=minVol, 100=maxVol, 50=50% between minVol and maxVol

minVol, maxVol = 0-248 in 0.5dB steps, 1=-99.5dB, 200=0dB, 248=+24dB

mute= 0 = Normal, 1 = Mute Left, 2 = Mute Right, 3 = Mute Left and Right

bridgedMode = 0 = Normal, 1 = Bridged

pwrMode = 0=Off, 1 = On, 2 = 12Vtrigger, 3=Auto

autolevel = level when zone turns on. 0-248 in 0.5dB steps, 1=-99.5dB, 200=0dB, 248=+24dB

autoTime = time, in seconds, before a quiet zone turns off

Example	Example Result	Comments
amp/stdzone{"zone":0, "volLeft":43,"volRight":43}	{"Result":true,"Message":"Zone updated"}	all POST data are optional except zone
amp/stdzone	{"Result":true,"zones":[{"zone":0,"channelMode":0,"volLeft":43,"volRight":43,"mute":0,"minVol":40,"maxVol":208,"bridgedMode":1,"pwrMode":1,"autoLevel":80,"autoTime":36000,"clip":0},{"zone":1,"channelMode":0,"volLeft":44,"volRight":44,"mute":0,"minVol":40,"maxVol":224,"bridgedMode":0,"pwrMode":1,"autoLevel":80,"autoTime":36000,"clip":0},{"zone":2,"channelMode":0,"volLeft":44,"volRight":44,"mute":0,"minVol":40,"maxVol":224,"bridgedMode":0,"pwrMode":1,"autoLevel":80,"autoTime":36000,"clip":0},{"zone":3,"channelMode":0,"volLeft":44,"volRight":44,"mute":0,"minVol":40,"maxVol":224,"bridgedMode":0,"pwrMode":1,"autoLevel":80,"autoTime":36000,"clip":0},{"zone":4,"channelMode":0,"volLeft":44,"volRight":44,"mute":0,"minVol":40,"maxVol":224,"bridgedMode":0,"pwrMode":1,"autoLevel":80,"autoTime":36000,"clip":0},{"zone":5,"channelMode":0,"volLeft":50,"volRight":50,"mute":0,"minVol":40,"maxVol":224,"bridgedMode":0,"pwrMode":1,"autoLevel":80,"autoTime":36000,"clip":0},{"zone":6,"channelMode":0,"volLeft":44,"volRight":44,"mute":0,"minVol":40,"maxVol":224,"bridgedMode":0,"pwrMode":1,"autoLevel":80,"autoTime":36000,"clip":0},{"zone":7,"channelMode":0,"volLeft":35,"volRight":35,"mute":0,"minVol":40,"maxVol":224,"bridgedMode":0,"pwrMode":1,"autoLevel":80,"autoTime":36000,"clip":0}]}

DolbySettings

Description: Manage global settings of Dolby multi-channel

Command: amp/dolbysettings {POSTdata}

Post: {"dolbyMode":1,"pcmUpMixF":0,"minVol":40,"maxVol":224,"bass":128,
"treble":128}

dolbyMode = 0 = Standard mode, 1 = Dolby 3-zone mode, 2 = Dolby 4-zone mode

pcmUpMixF= 0 = Pass through, 1 = up-mix PCM to 5.1

volume = 0-100, 0=Mute, 1=minVol, 100=maxVol, 50=50% between minVol and maxVol

minVol, maxVol = 0-248 in 0.5dB steps, 1=-99.5dB, 200=0dB, 248=+24dB

bass = 104 to 152 (128=Flat,104=-12dB,152=+12dB)

treble = 104 to 152 (128=Flat,104=-12dB,152=+12dB)

Example	Example Result	Comments
amp/dolbysettings{"dolbyMode":1,"pcmUpMixF":0}	{"Result":true,"Message":"Dolby Settings updated"}	all POST data are optional except zone
amp/dolbysettings	{"Result":true,"dolbyMode":1,"volume":50,"pcmUpMixF":1,"mute":1,"minVol":40,"maxVol":224,"bass":128,"treble":128,"zones":[{"zone":0,"delayLeft":30,"delayRight":50,"spkrLeft":200,"spkrRight":200,"eqLeft":[{"eq":128},{"eq":128},{"eq":128},{"eq":128},{"eq":128}],"eqRight":[{"eq":128},{"eq":128},{"eq":128},{"eq":128},{"eq":128}]},{"zone":1,"delayLeft":0,"delayRight":0,"spkrLeft":200,"spkrRight":200,"eqLeft":[{"eq":128},{"eq":128},{"eq":128},{"eq":128},{"eq":128}],"eqRight":[{"eq":128},{"eq":128},{"eq":128},{"eq":128},{"eq":128}]},{"zone":2,"delayLeft":0,"delayRight":0,"spkrLeft":200,"spkrRight":200,"eqLeft":[{"eq":128},{"eq":128},{"eq":128},{"eq":128},{"eq":128}],"eqRight":[{"eq":128},{"eq":128},{"eq":128},{"eq":128},{"eq":128}]},{"zone":3,"delayLeft":0,"delayRight":0,"spkrLeft":200,"spkrRight":200,"eqLeft":[{"eq":128},{"eq":128},{"eq":128},{"eq":128},{"eq":128}],"eqRight":[{"eq":128},{"eq":128},{"eq":128},{"eq":128},{"eq":128}]}]}

Dolbyzone

Description: Manage settings of Dolby output zones

Command: amp/dolbyzone {POSTdata}

Post: {"zone":0,"delayLeft":0,"delayRight":0,"spkrLeft":200,"spkrRight":200,
"eqLeft":[{"eq":128},{"eq":128},{"eq":128},{"eq":128},{"eq":128}],
"eqRight":[{"eq":128},{"eq":128},{"eq":128}, {"eq":128},{"eq":128}]}

zone = 0-3 0= FLFR, 1=SLSR, 2= C, 3=Sub

delayLeft, delayRight = time in ms up to 50

spkrLeft, spkrRight = 0-248 in 0.5dB steps, 1=-99.5dB, 200=0dB, 248=+24dB

eq = 104 to 152 (128=Flat,104=-12dB,152=+12dB)

Example	Example Result	Comments
amp/dolbyzone{"zone":0,"delayLeft":0,"delayRight":0}	{"Result":true,"Message":"Dolby zone updated"}	all POST data are optional except zone
amp/dolbyzone	{"Result":true,"zones":[{"zone":0,"delayLeft":30,"delayRight":50,"spkrLeft":200,"spkrRight":200,"eqLeft":[{"eq":128},{"eq":128},{"eq":128},{"eq":128},{"eq":128}],"eqRight":[{"eq":128},{"eq":128},{"eq":128},{"eq":128},{"eq":128}]},{"zone":1,"delayLeft":0,"delayRight":0,"spkrLeft":200,"spkrRight":200,"eqLeft":[{"eq":128},{"eq":128},{"eq":128},{"eq":128},{"eq":128}],"eqRight":[{"eq":128},{"eq":128},{"eq":128},{"eq":128},{"eq":128}]},{"zone":2,"delayLeft":0,"delayRight":0,"spkrLeft":200,"spkrRight":200,"eqLeft":[{"eq":128},{"eq":128},{"eq":128},{"eq":128},{"eq":128}],"eqRight":[{"eq":128},{"eq":128},{"eq":128},{"eq":128},{"eq":128}]},{"zone":3,"delayLeft":0,"delayRight":0,"spkrLeft":200,"spkrRight":200,"eqLeft":[{"eq":128},{"eq":128},{"eq":128},{"eq":128},{"eq":128}],"eqRight":[{"eq":128},{"eq":128},{"eq":128},{"eq":128},{"eq":128}]}]}

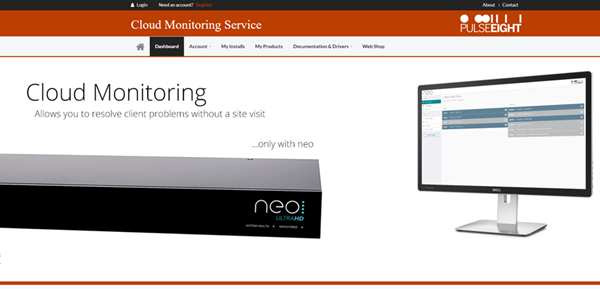

Remote Monitoring Portal

For the latest documentation, further technical resources and 3^rd party control driver downloads, please visit http://monitoring.pulse-eight.com/ and login using your Dealer ID.

If you do not have a Dealer ID, then please contact your Pulse-Eight sales representative who will be able to help you.
