neo:6a User Manual

Modified on Wed, 06 Mar 2024 at 03:04 AM

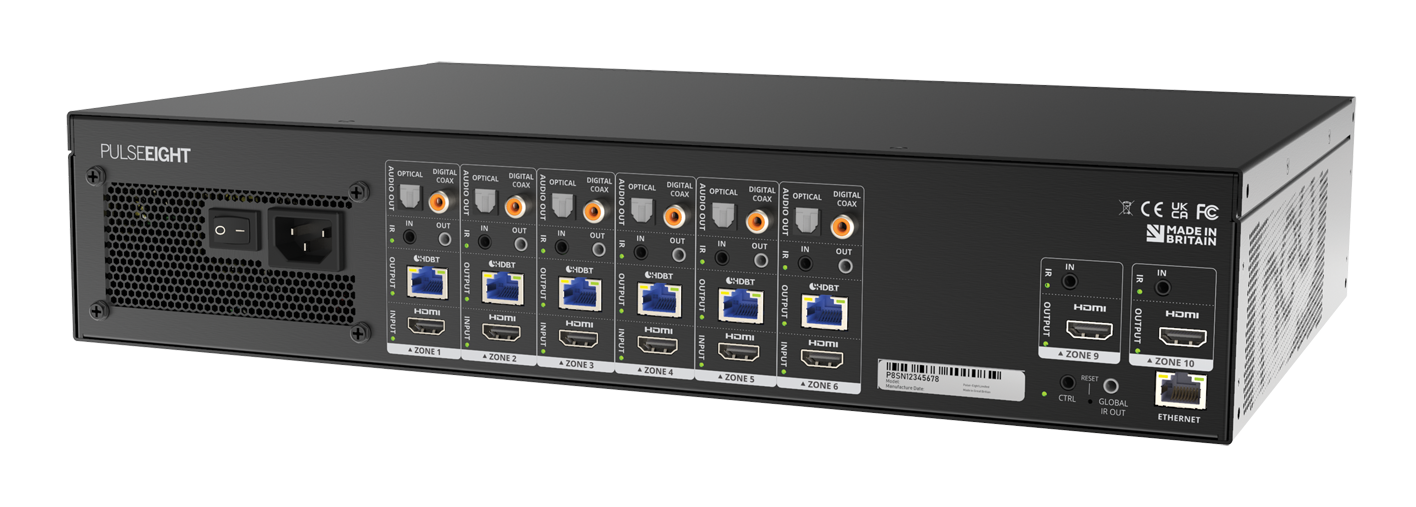

The neo:6a is a 6x10 HDMI®/HDBaseT video matrix switch and the perfect product for routing multiple 4K UHD source devices to multiple locations within your environment. Supporting HDMI® 2.0 a/b, the latest HDCP 2.3 and 10.2Gbps bandwidth, this is a must-have product in any residential multi-room control system integrating with the latest 4K UHD media devices.


The Pulse-Eight neo:6a Video Matrix offers uncompressed switching and transmission of 4K UHD content - featuring 6 HDMI® inputs, 6 HDBaseT Outputs, and 2 HDMI® outputs - and audio breakout for 6 audio output zones (with the options Optical and Digital Coax). The neo:6a goes the distance, supporting up to full 4K/30, 4:4:4, or 4K/60, 4:2:0 up to 40 meters (130 feet), and 1080p/60, 4:4:4 up to 70 meters (230 feet). With audio breakout, Dolby Digital compliance, CEC control, and support for multiple video control methods, the neo:6a is the uncompromising solution for residential and commercial installations.


The Pulse-Eight neo:6a Kit includes 6 neo:Lite HDBaseT receivers which are PoH compliant.


Key Features:

  • Ultra HD 4K 30 4:4:4 Video Transmission (up to 300Mhz)

  • Latest HDCP 2.3 Support

  • 6 x HDMI® Inputs

  • 6 x HDBaseT Class B Outputs

  • 2 x HDMI® Outputs

  • 6 x Audio Breakout Output Zones (Optical & Digital Coax)

  • HDMI-CEC Bi-Directional Control

  • Alexa Voice Control

  • Responsive Web Interface


Inside The Box (Kit):

  • 1 x neo:6a Chassis

  • 6 x neo:Lite PoH Receivers

  • 1 x Rack Mounting Kit

  • 1 x Power Cord

  • 1 x IR Blaster Cable Pack

  • 1 x Quick Start Guide

Download Full Manual:
