neo:X+ User Manual

Modified on Wed, 06 Mar 2024 at 03:01 AM

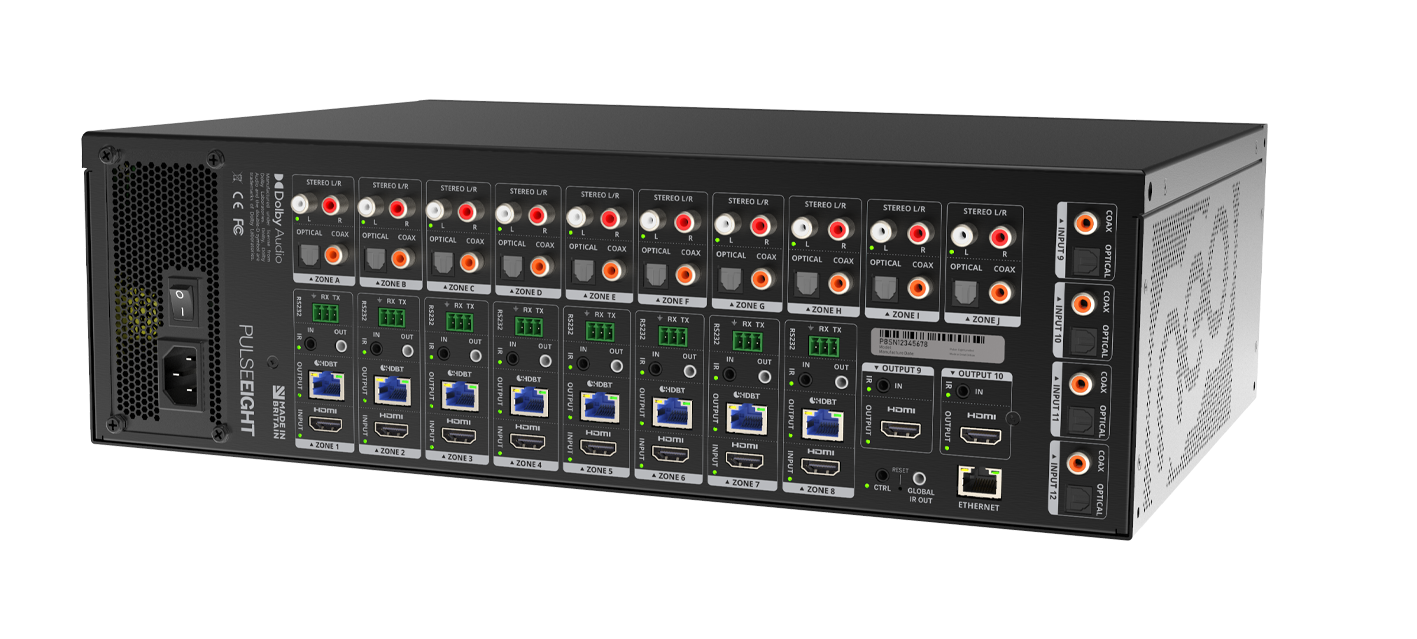

The neo:X+ is an 8x10 HDMI®/HDBaseT video matrix switch and the perfect product for routing multiple 4K UHD source devices to multiple locations within your environment. Supporting HDMI® 2.0 a/b, the latest HDCP 2.3, and 18Gbps bandwidth is a must-have product in any residential multi-room control system integrating with the latest 4K UHD media devices.

The Pulse-Eight neo:X+ Video & Audio Matrix has it all - with both audio and video inputs and video and audio outputs. Featuring 8 HDMI® inputs, 8 HDBaseT Outputs, and 2 HDMI® outputs alongside 10 audio output zones (with the options of Stereo L/R, Optical, and Digital Coax) and 4 audio input zones (with the option of Optical and Digital Coax). The neo:X+ goes the distance, supporting up to full 4K/60, 4:4:4, 8bit or 4K/60 4:2:2, 12bit up to 100 meters (330 feet). Dolby Digital compliance and support for multiple video control methods with an audio breakout.

The Pulse-Eight neo:X+ kit includes 8 neo:Ultra HDBaseT receivers which are PoH compliant.


Key Features:

  • Ultra HD 4K 60Hz 4:4:4 Video Transmission (up to 600Mhz)

  • Latest HDCP 2.3 Support

  • 8 x HDMI® Inputs

  • 8 x HDBaseT Class C + DSC Outputs

  • 2 x HDMI® Outputs

  • 10 x Audio Output Zones

  • 4 x Audio Input Zones

  • Audio Extract & Matrix

  • HDMI® ARC

  • Dolby Digital 5.1 Downmix

  • RS232 Bi-Directional extension

  • HDMI®-CEC Bi-Directional Control

  • Alexa Voice Control

  • Responsive Web Interface

  • 10/100 Ethernet for 3rd party control and connection


Inside The Box (Kit):

  • 1 x neo:X+ Chassis

  • 8 x neo:Ultra PoH Receivers

  • 1 x IR Blaster Cable Pack
  • 1 x 8 Button IR Remote
  • 1 x Rack Mounting Kit
  • 1 x Power Cord
  • 8 x Phoenix Connectors
  • 1 x Quick Start Guide

Download Full Manual:
