neo:XSR User Manual

Modified on Wed, 18 Dec at 8:51 PM


The neo:XSR is a 6x6 HDMI®/HDBaseT video matrix switch and the perfect product for routing multiple 4K UHD source devices to multiple locations within your environment. Supporting HDMI® 2.0 a/b, the latest HDCP 2.3 and 18Gbps bandwidth this is a must-have product in any residential multi-room control system integrating with the latest 4K UHD media devices


Downloads:








Full Description:

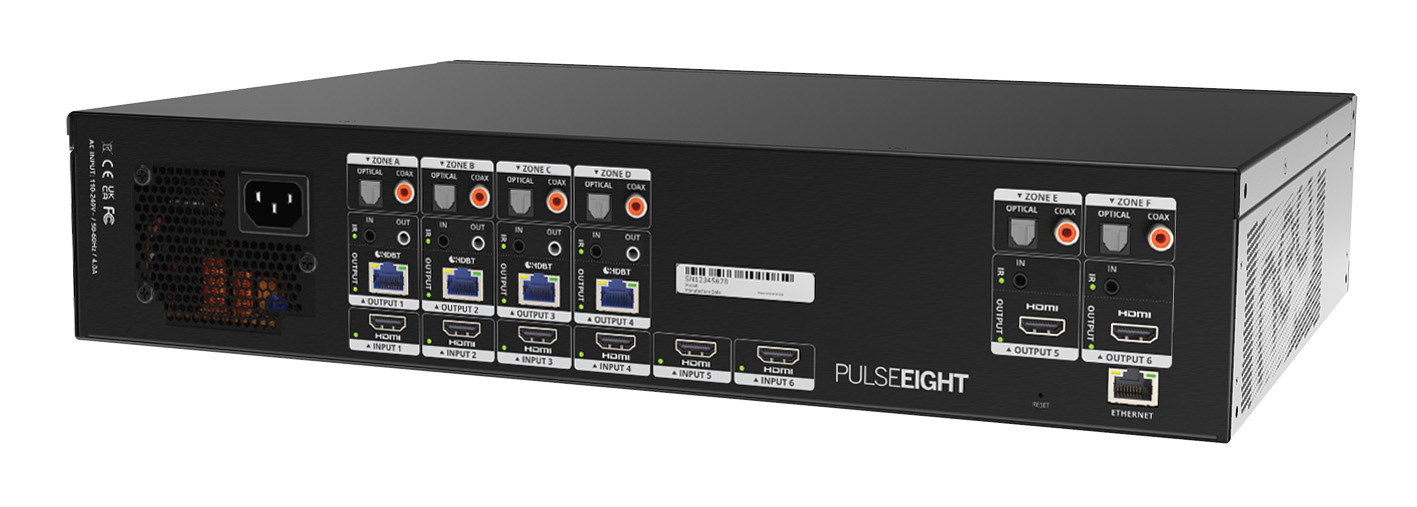

The Pulse-Eight neo:XSR Video & Audio Matrix has it all - with multiple video inputs and both video and audio outputs. Featuring 6 HDMI® inputs, 4 HDBaseT Outputs, and 2 HDMI® outputs alongside 6 audio output zones (with the options of Optical and Digital Coax). The neo:XSR goes the distance, supporting up to full 4K/60, 4:4:4, 8bit or 4K/60 4:2:2, 12bit up to 40 meters (130 feet). With audio breakout, Dolby Digital compliance and support for multiple video control methods.


Key Features:

  • Ultra HD 4K 60Hz 4:4:4 Video Transmission (up to 600Mhz)
  • Latest HDCP 2.3 Support
  • 6 x HDMI® Inputs
  • 4 x HDBaseT Class C + DSC Outputs
  • 2 x HDMI® Outputs
  • 6 x Audio Output Zones
  • HDMI® ARC
  • IR Blasting feature
  • HDMI-CEC Bi-Directional Control
  • Alexa Voice Control
  • Responsive Web Interface
  • 10/100 Ethernet for 3rd party control and connection

Inside The Box (Kit):

  • 1 x neo:XSR Chassis
  • 1 x Rack Mounting Kit
  • 1 x Power Cord
  • 1 x IR Blaster Cable Pack
  • 1 x Quick Start Guide
