neo:4 User Manual

Modified on Mon, 23 Sep at 9:31 PM

The neo:4 is a 4x4 HDMI®/HDBaseT video matrix switch and the perfect product for routing multiple 4K UHD source devices to multiple locations within your environment. Supporting HDMI® 2.0 a/b, the latest HDCP 2.3 and 10.2Gbps bandwidth, this is the perfect cost-effective product for a multi-room control system integrating with the latest 4K UHD devices.


Downloads:








Full Description:

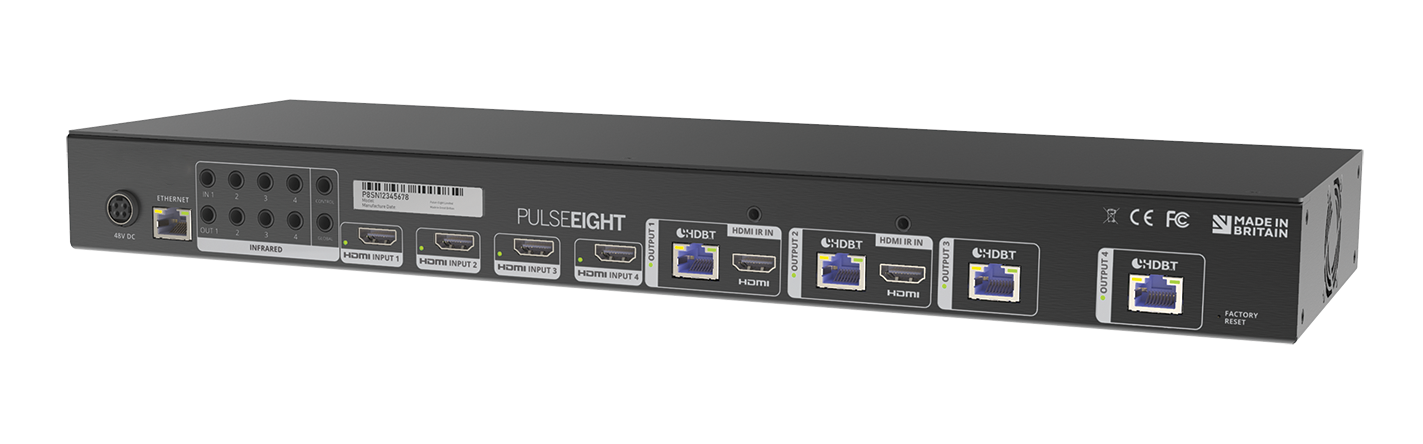

The Pulse-Eight neo:4 Video Matrix offers uncompressed switching and transmission of 4K UHD content - featuring 4 HDMI® inputs, 4 HDBaseT Outputs and 2 (Mirror) HDMI® outputs. The neo:4 goes the distance, supporting 4K/30, 4:4:4, or 4K/60, 4:2:0 up to 40 meters (130 feet), and 1080p/60, 4:4:4 up to 70 meters (230 feet). With CEC control and support for multiple video control methods, the neo:4Pro is the uncompromising solution for residential and commercial installations.


The Pulse-Eight neo:4 Kit includes 4 neo:Lite HDBaseT receivers which are PoH compliant.



Key Features:

  • Ultra HD 4K 30 4:4:4 Video Transmission (up to 300Mhz)
  • Latest HDCP 2.3 Support
  • 4 x HDMI® Inputs
  • 4 x HDBaseT Class B Outputs
  • 2 x Miror HDMI® Outputs
  • HDMI-CEC Bi-Directional Control
  • Alexa Voice Control
  • Responsive Web Interface



Inside The Box (Kit):

  • 1 x neo:4 Chassis
  • 4 x neo:Lite PoH Receivers
  • 1 x Rack Mounting Kit
  • 1 x Power Supply
  • 1 x IR Blaster Cable Pack
  • 1 x 4 Button IR Remote
  • 1 x Quick Start Guide
