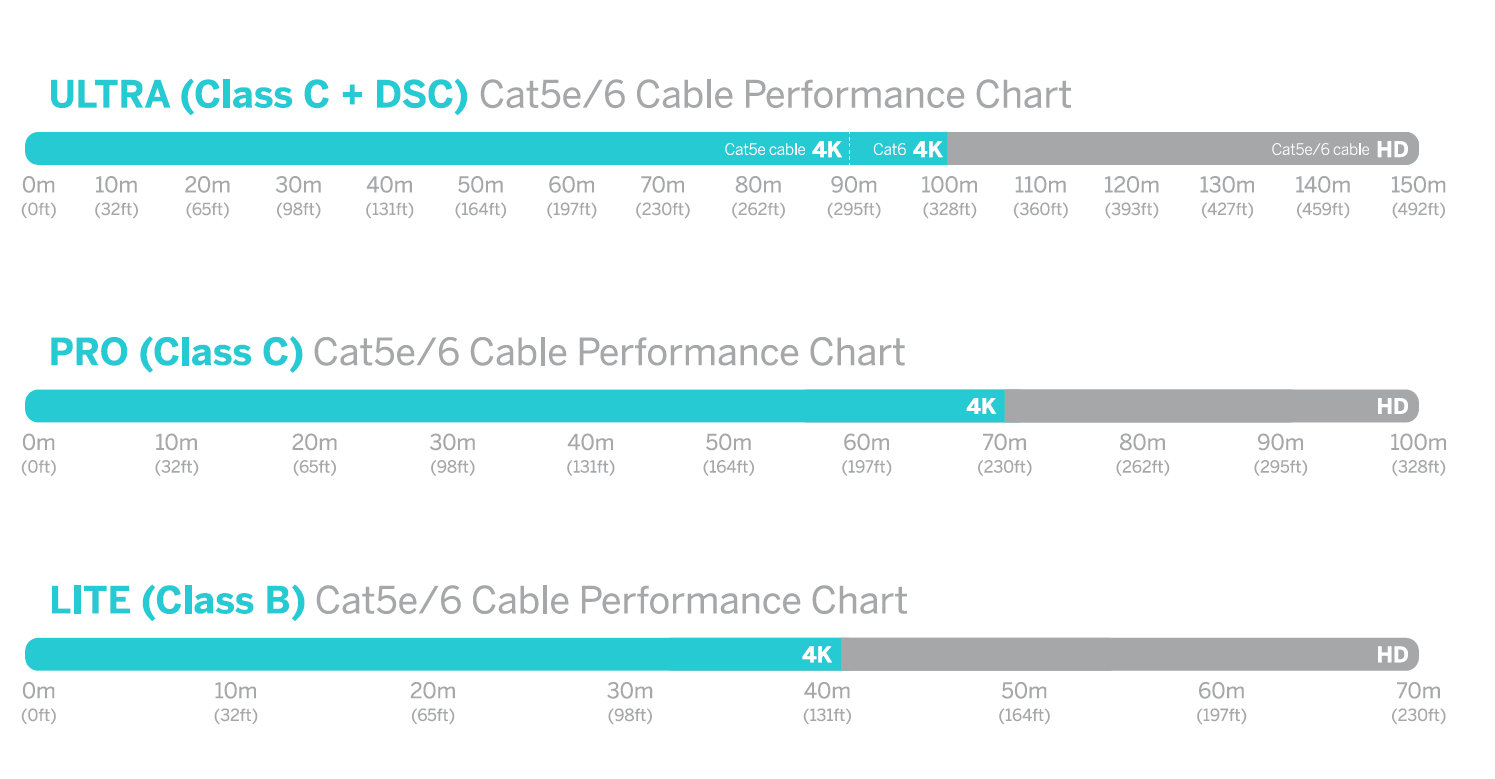

The below chart illustrates the maximum ranges for our Neo Lite, Neo Pro and Neo Ultra Receivers and our Matrices and Transmitters when you are transmitting 1080p and 4K.
Please note that you will also need to check the maximum range of your Neo Range Matrix transmission and your Neo Receiver and take the lower value of the two.
Neo Matrix Range Max. Transmission Distance
| Model | Range at 1080p | Range at 4K |
| Neo Ultra Receiver | up to 100m | up to 100m |
| Neo UltraSR Receiver | up to 70m | up to 40m |
| Neo Pro Receiver | up to 100m | up to 100m |
| Neo Lite Receiver | up to 70m | up to 40m |
| Neo X+ | up to 100m | up to 100m |
| Neo X:MR | up to 100m | up to 100m |
| Neo X:SR | up to 70m | up to 40m |
| Neo 8a | up to 70m | up to 40m |
| Neo 6a | up to 70m | up to 40m |
| Neo 4 | up to 70m | up to 40m |
| Neo Ultra Extender Set (Long Range Mode) | up to 150m | N/A |
| Neo Ultra Extender Set (Standard) | up to 100m | up to 100m |
| Neo Ultra Transmitter | up to 100m | up to 100m |
| Neo Pro Transmitter | up to 100m | up to 100m |
| Neo Lite Transmitter | up to 70m | up to 40m |
