6th/7th/8th Gen cable harness for NUC HDMI-CEC Adapter

Modified on Tue, 19 Nov, 2019 at 2:55 PM

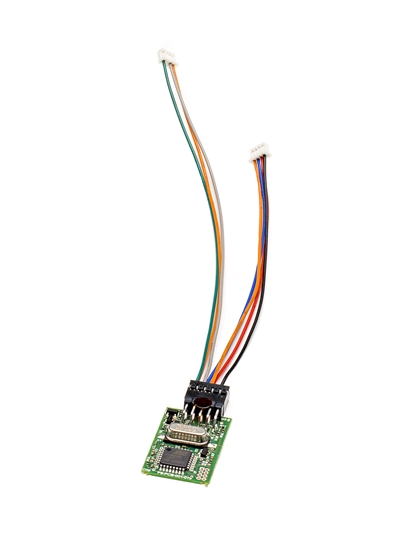

This is the harness you will recieve.



Plug the connector with 3 wires into the header marked X.

Plug the connector with 4 wires into the header marked P or N.

Image courtesy "Intel NUC Products NUC7CJY/NUC7PJY Technical Product Specification"


List of compatible NUC models:


8th Generation:


NUC8i7BEH
NUC8i5BEH
NUC8i5BEK
NUC8i3BEH
NUC8i3BEK

NUC8i3CYS


7th Generation:

NUC7CJYH
NUC7PJYH
NUC7CJYSAL
NUC7CJYB
NUC7i7DNKE
NUC7i7DNHE
NUC7i7DNBE
NUC7i5DNKE
NUC7i5DNHE
NUC7i5DNBE
NUC7i3DNKE
NUC7i3DNHE
NUC7i3DNBE
NUC7i7BNH
NUC7i7BNHX1
NUC7i7BNHXG
NUC7i7BNKQ
NUC7i5BNH
NUC7i5BNHX1
NUC7i5BNHXF
NUC7i5BNK
NUC7i5BNKP
NUC7i7BNB
NUC7i5BNB
NUC7i3BNK
NUC7i3BNH
NUC7i3BNHX1
NUC7i3BNHXF
NUC7i3BNB


6th Generation:
NUC6CAYS
NUC6CAYH
NUC6CAYB
NUC6i5SYH
NUC6i5SYK
NUC6i3SYH
NUC6i3SYK
NUC6i5SYB
NUC6i3SYB


Pinout
